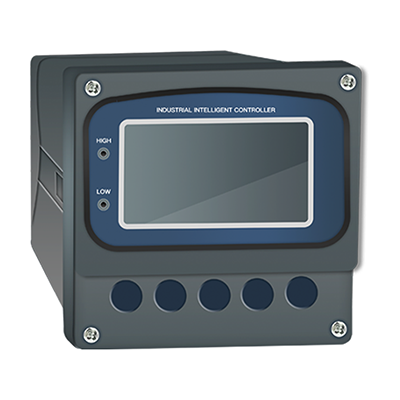

Corrosion rate transmitter

Intelligent corrosion rate electrode is a device that can monitor and accurately
  • Measurement principle: LPR and EIS
  • Signal mode: RS485 and 4 to 20mA
  • Measuring range: 00.25mm/a;0~0.5mm/a;0~1mm/a0~5
  • Resolution: 0.0001
  • reproducibility: ±0.001
  • Response time: 50s
  • Sensor drift: ≤0.3%FS/24h
  • Waterproof class: IP68

Description

Product Tags

Intelligent corrosion rate electrode is a device that can monitor and accurately measure the corrosion rate of materials in real time. It converts the corrosion process into an electrical signal through electrochemical methods, and then obtains the results of the corrosion rate through specific data processing techniques. This electrode not only has the characteristics of high precision and high stability, but also has intelligent functions, which can realize remote monitoring and data analysis. Leading magnetic isolation technology, anti-polarization technology, strong anti-interference ability, no transmitter, stable measurement, accurate, maintenance-free, easy installation.
Modbus485 and 4-20mA output at the same timeRange (0~0.25,0~0.5,0~1,0~5)mm/a (can be modified)Pitting corrosion and average corrosion can be measured at the same timeLinear polarization resistance (LPR) and AC impedance spectrum analysis (EIS) are usedInternal signal isolation technology, strong interference, wide voltage power supply (7~30V)Using advanced anti-polarization technology, low drift, small size, fast response speedStainless steel 316L material; IP68 waterproof standardEasy to install, simple; Stable performance, long service life
