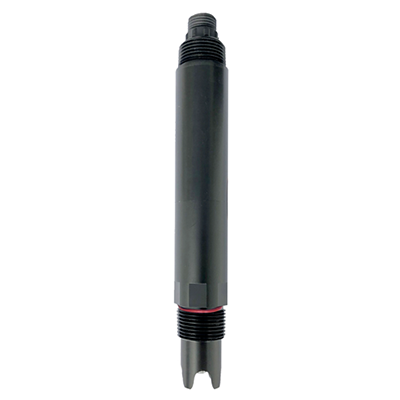

Intelligent ORP sensor

The AMT/ORP-400 intelligent ORP sensor is a smart sensor with RS485 communicatio

Measurement principle: Glass electrode method
Range range: -1500~+1500mV
Resolution: 1mV
precision: ±6mV
Operating temperature: 0-65℃
Working pressure: <0.1MPa
Power supply: 12~24VDC

Send email to us

Description

Product Tags

The AMT/ORP-400 intelligent ORP sensor is a smart sensor with RS485 communication interface and standard Modbus protocol. Corrosion resistant housing, built-in PT10O0 temperature sensor and compensation algorithm, suitable for all kinds of harsh working environment. The sensor has the advantages of high precision, long life and small drift.

Industrial grade composite ORP electrode, suitable for harsh working environment;

Compared with double salt bridge design, the electrode has long service life;

PT1000 temperature compensation, accuracy up to ±0.1℃ :

Corrosion-resistant shell, waterproof grade P68, can work underwater for a long time;

RS485 communication interface, standard Modbus protocol, easy to integrate;

Double high impedance differential amplifier, strong anti-interference, fast response speed.
